British Army Challenger 1 Mk 3 Main Battle Tank
(Note: When the British Challenger tank entered service in the 1980s, it was simply called Challenger. It began being referred to as “Challenger 1” after Challenger 2 was designed in the late 1980s. Not to be confused with Challenger 3, the upgraded Challenger 2 2030s service life extension.)
The FV4030/4 Challenger 1 originated from the Shir 2 project, a development by the United Kingdom for the Imperial State of Iran. The tank was intended as a successor to Iran’s fleet of Chieftain tanks and was in advanced development by the late 1970s. Widespread political and social unrest in Iran culminated in the Iranian Revolution of 1978–1979, during which the Shah’s government was overthrown, and the Islamic Republic of Iran was established. Following the revolution, most Western defence contracts were cancelled, leaving the UK with a nearly complete tank design and placed some 10,000 jobs at risk. This design was subsequently adapted to British Army requirements, becoming Challenger 1 in 1983.
It had a crew of four — commander, gunner, loader, and driver — and weighed between 62 and 68 tonnes. Measuring roughly 8.3 metres in length excluding the gun, 3.5 metres in width, and 2.5 metres in height, it was protected by Chobham composite armour (later known as Dorchester) designed to resist both armour-piercing and high-explosive threats. Armament consisted of the 120 mm L11A5 rifled gun inherited from the Chieftain tank, capable of firing armour-piercing, HESH, smoke, and training rounds, supplemented by a coaxial 7.62 mm machine gun and a 7.62 mm anti-aircraft machine gun on the turret. The gun was stabilised for limited firing on the move, and the gunner had a thermal sight for day and night operations, supported by manual and semi-automatic fire control. Externally, the turret was fitted with large wire-mesh baskets on both sides and across the rear. These provided extra stowage space for crew equipment and kept loose items outside the fighting compartment.
The powertrain consisted of a Perkins/Rolls-Royce CV12 V12 diesel engine rated at approximately 1,200 hp, coupled with a David Brown TN37 transmission (a mechanical automatic gearbox derived from previous British tank designs), and Horstman Hydrogas hydropneumatic suspension. The tank could reach speeds of around 31 mph (50 km/h) on roads, with an operational range of roughly 280 miles (450 km). Additional features included basic NBC protection and standard radio communications, and the design allowed for later upgrades.
The Challenger 1 Mk 2 represented the first substantial series of upgrades to the original vehicle. Introduced in the late 1980s, it incorporated lessons learned from training and early operational experience. Armour protection was improved with additional composite layers and minor refinements to the hull and turret. The gunner was provided with a Thermal Observation and Gunnery System (TOGS), allowing more effective day and night operations, and gun stabilisation was improved for more accurate firing on the move. Reliability was increased through modifications to the engine, transmission, and suspension components, while electronics, communications, and crew aids were updated. The Mk 2 maintained the same primary armament and basic powertrain as the original Challenger 1, but these enhancements improved overall battlefield performance and crew survivability.
The Challenger 1 Mk 3 produced between December 1986, and June 1990 represented the most advanced version of the Challenger 1 design. Armour was further strengthened with additional composite layers and reactive armour blocks on the hull and turret to improve resistance against shaped-charge weapons, and side and frontal protection was increased. Defensive systems, including NBC protection, were updated. The main gun remained the 120 mm L11A5 rifled weapon with its full range of ammunition types, while fire control was significantly improved: the gunner had an upgraded thermal sight, a digital system for aiming calculations, and stabilisation for increased accuracy on the move and faster lock-on. The CV12 diesel engine and TN37 transmission were retained, but both were modified for better reliability, maintainability, and cooling, particularly in hot and dusty environments. Horstman suspension was retuned and running gear components were strengthened. Electronic systems, navigation aids, and crew optics were modernised.
Challenger 1 demonstrated its combat capability during the 1991 Gulf War (Operation Granby). Challenger 1 units were deployed in significant numbers, though not all vehicles in the operational theatre represented a single upgrade level. Approximately 220 tanks were deployed to Saudi Arabia, and prior to the land offensive vehicles were modified for desert operations with enhanced cooling, filtration, and ROMOR-A Explosive Reactive Armour packages (ERA), made in UK by Royal Ordnance and fitted in Saudi Arabia. Operational range was significantly extended by carrying an additional 200 litres of fuel in external tanks mounted on the rear of the vehicle. Other enhancements comprised extra external stowage bins and the use of maintenance-free batteries.
The Challenger was credited with approximately 300 Iraqi tank kills without loss and established the record for the longest confirmed tank-to-tank kill in history at a range of almost 3 miles. Despite operating in the harsh desert environment, the Challenger fleet maintained an exceptional in-service and availability figure exceeding 90%.
Challenger 1 was gradually replaced by Challenger 2 from 1998 onward and withdrawn from frontline British service in the early 2000s, with many of the 420 Challenger 1s built being sold to the Royal Jordanian Army.
Compiled by Neil Fraser.

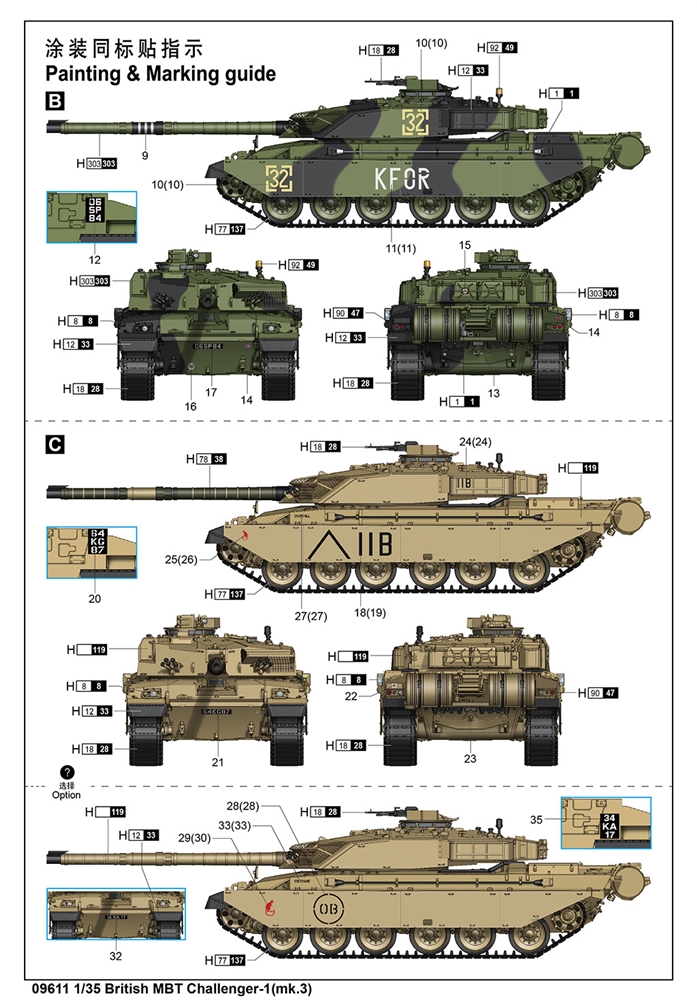

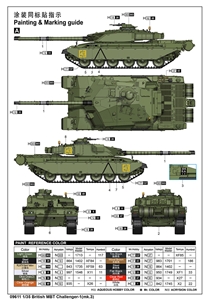

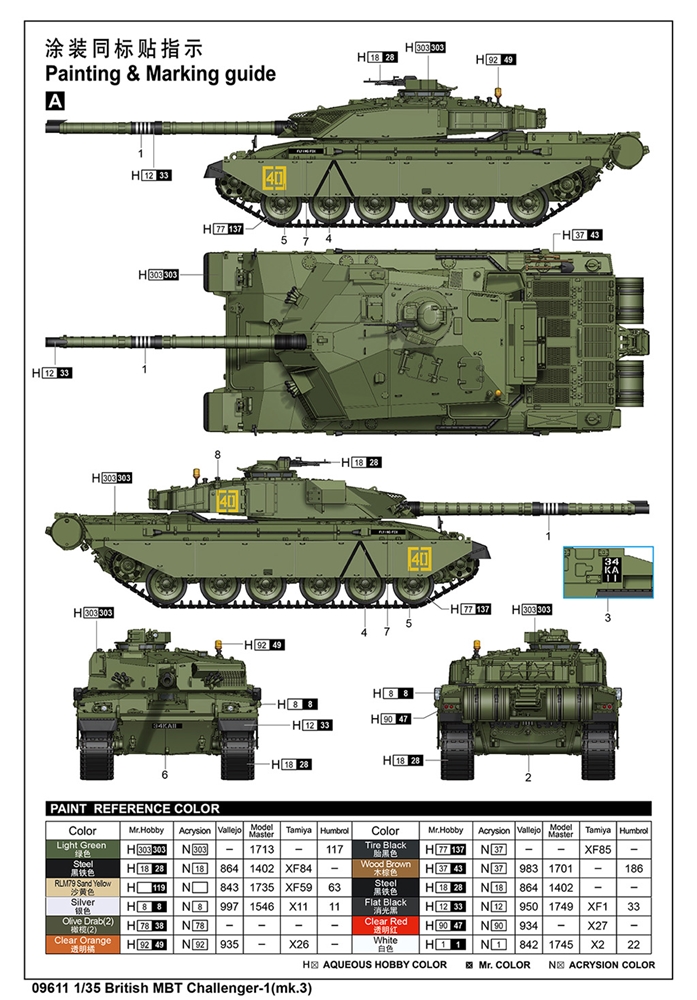

Features: 14 sprues, upper & lower hull. Individual track links. Photo-etch parts included. Choice of 4 markings: (1) 34 KA 11 “FLYING FOX”. (2) 06 SP 84 “IFOR”. (3/4) 64 KG 87 “CHURCHILL” or 34 KA 17 “COLERAINE”. L: 335.8 mm, W: 104 mm, Total parts: 630+.
Box code: 09611.
Box description: British MBT Challenger-1(mk.3).
1:35 scale plastic model kit from Trumpeter, requires paint and glue.
